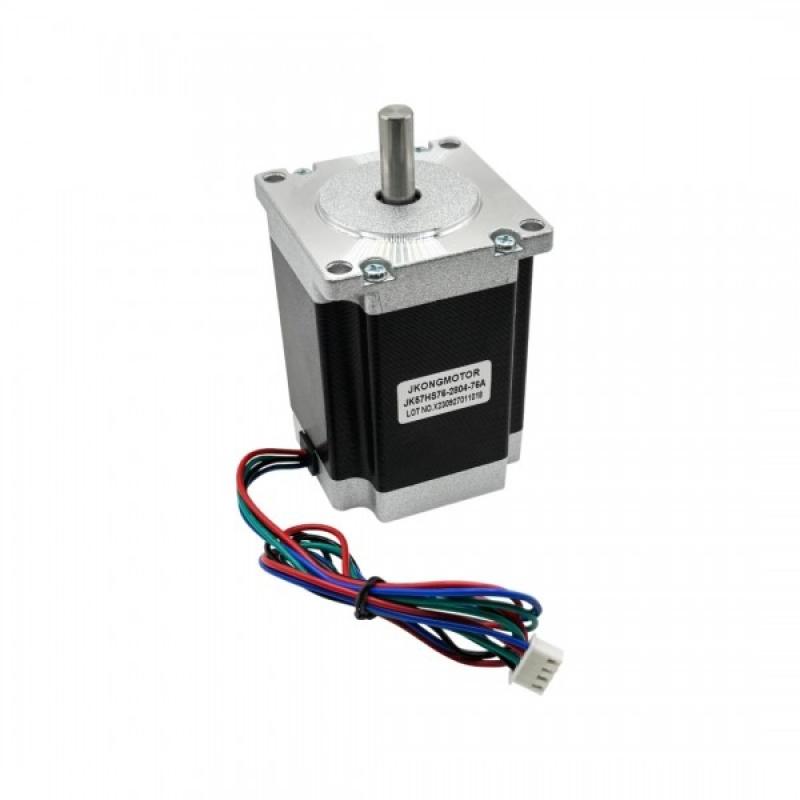

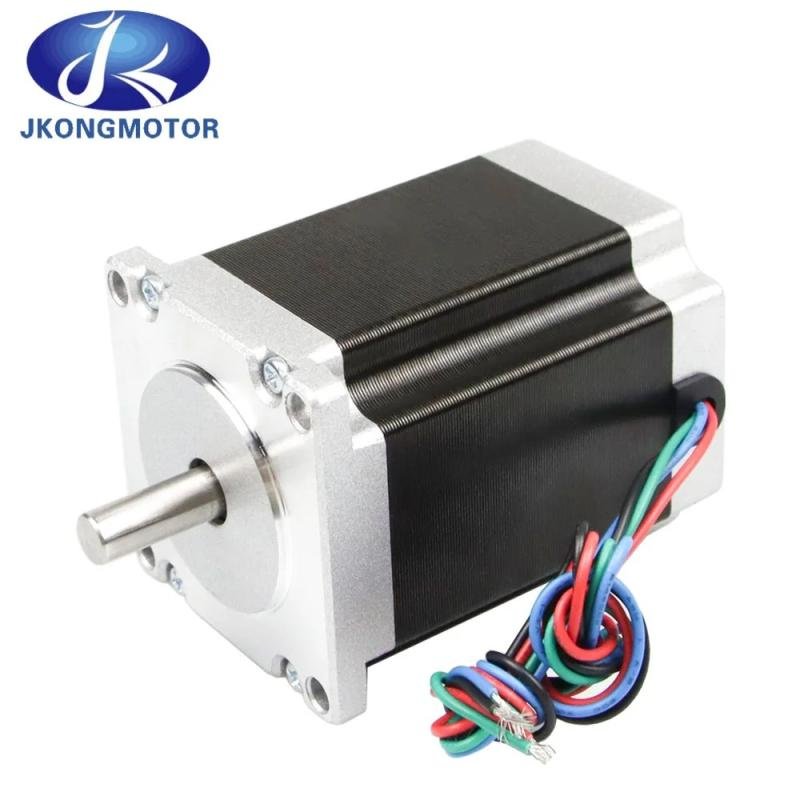

Nema 23 CNC Stepper Motor JK57HS76-2804 57x76mm 3A 1.89N.m
৳5,080
The JK57HS76-2804 is a high-performance NEMA 23 hybrid stepper motor designed for precise motion control applications, including CNC machines, 3D printers, and robotics. With a compact 57x76mm frame, it delivers substantial torque and is well-suited for tasks requiring accurate positioning and reliable performance.
Categories:
Electronics Products
/
Motors & Drivers
/
Gear, Pulley & Belts
/
Robotics
Brand:
Made in China
SKU: Available
| Feature | Details |
|---|---|
| Model | JK57HS76-2804 |
| Frame Size | NEMA 23 (57x76mm) |
| Phase | 2 |
| Step Angle | 1.8° |
| Voltage | 3.08V |
| Current | 3.0A per phase |
| Resistance | 1.1Ω |
| Inductance | 3.6mH |
| Holding Torque | 1.89Nm (19.2 kg·cm) |
| Shaft Diameter | 8mm (D-type single shaft) |
| Weight | Approximately 1.1 kg |
