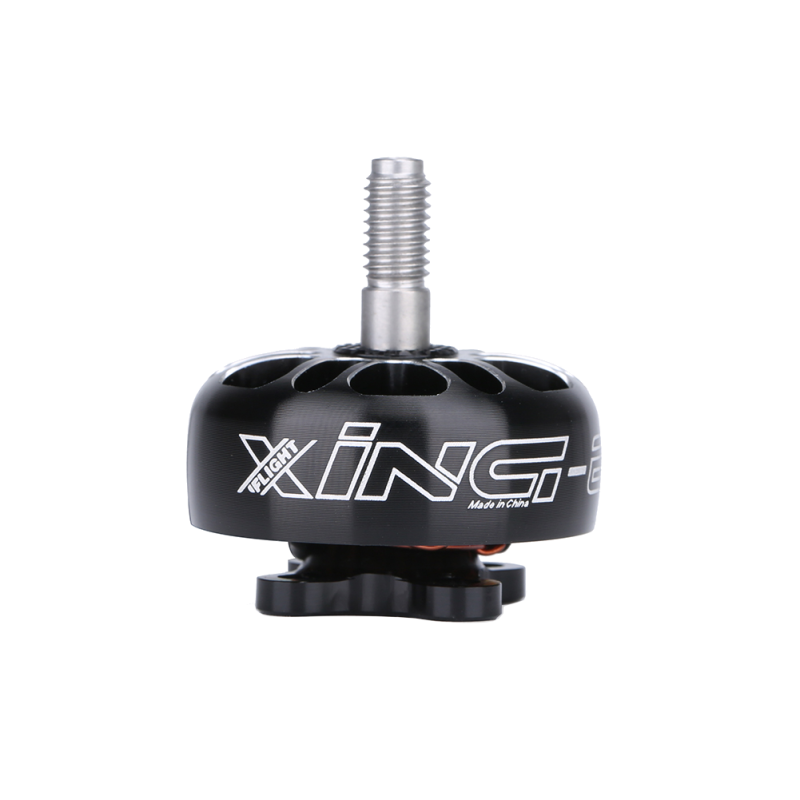

iFlight XING-E Pro 2306 1700kv 6S FPV Motor
৳2,400
The iFlight XING-E Pro 2306 1700KV motor is engineered for high-performance FPV racing and freestyle drones. It offers a balance between power, efficiency, and durability, making it suitable for both professional pilots and enthusiasts.
| Feature | Specification |
|---|---|
| KV Rating | 1700KV |
| Stator Size | 2306 |
| Configuration | 12N14P |
| Shaft Diameter | 4mm Steel Hollow Shaft |
| Mounting Pattern | 16x16mm M3 Thread |
| Weight | 33.1g (with 150mm 20AWG wires) |
| Idle Current | 2.1A @ 12.6V |
| Max Burst Current | 55.22A (less than 10 seconds) |
| Max Power (60s) | 885.4W |
| Internal Resistance | 40.6mΩ |
| Magnet Type | N52SH Curved |
| Bearings | 9x4x4mm NSK Bearings |
| Input Voltage | 2-6S LiPo |
| Rotor Type | Unibell |
| Lead Length | 160mm |
