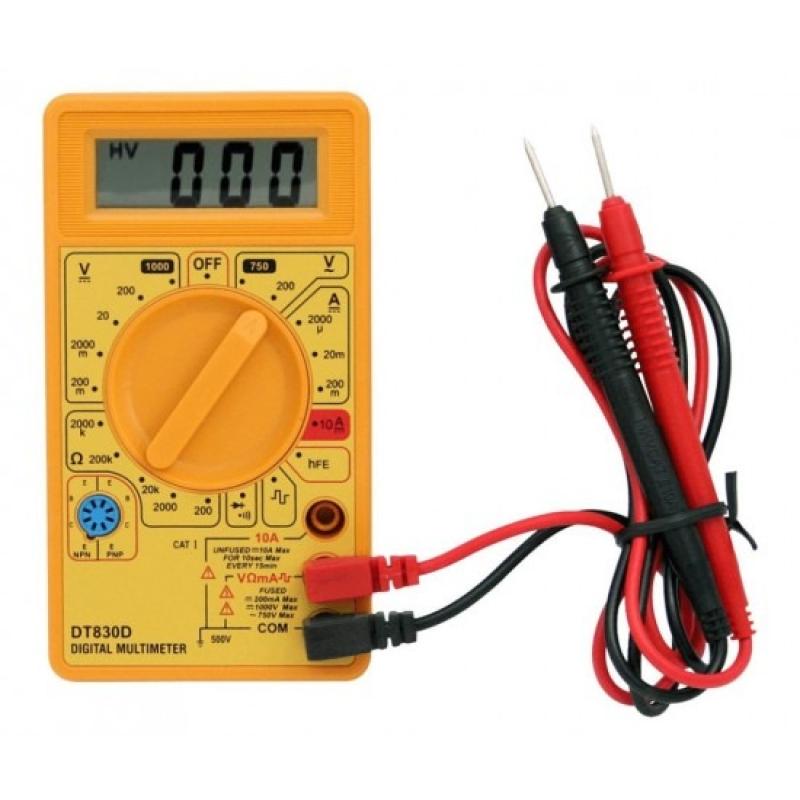

DT830D Digital Multimeter DC/AC Voltage Current/A Resistance/ ohm Test
৳255

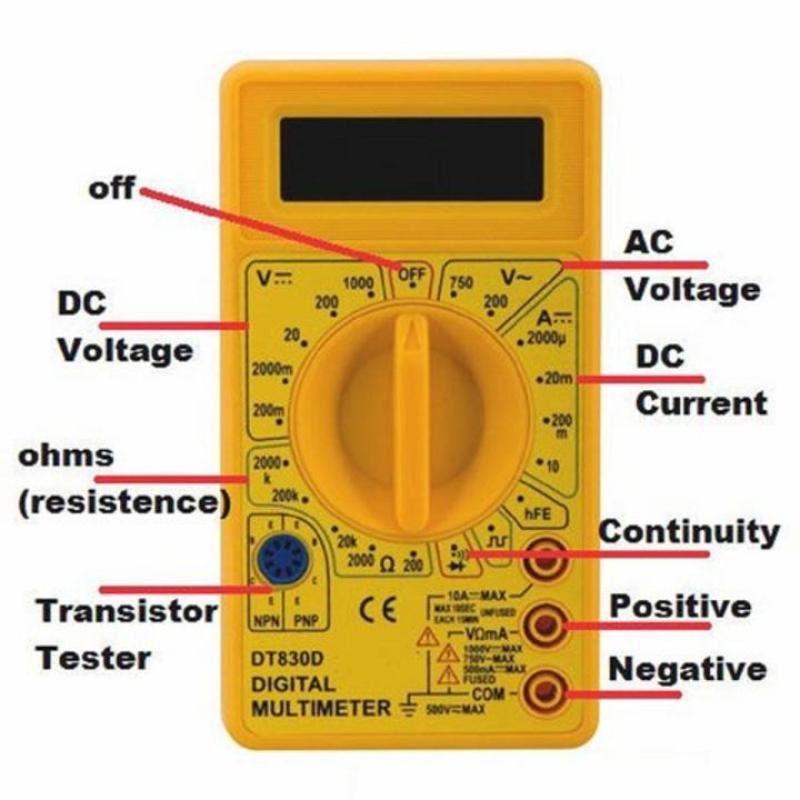

The DT830D is an entry-level digital multimeter widely used by students, hobbyists, and for light electronics work. It can measure DC and AC voltage, DC current, resistance, and also perform diode and transistor tests. The continuity function comes with an audible buzzer, making it easier to check circuits quickly.
It has a 3½‑digit LCD display (maximum reading of 1999), manual range selection, and is powered by a 9V battery. While not suitable for high-precision lab work, it provides reliable readings for everyday tasks, troubleshooting, and electronics learning projects.
| Feature | Details / Ranges |
|---|---|
| Model | DT830D |
| DC Voltage Ranges | 200 mV, 2 V, 20 V, 200 V, 1000 V |
| AC Voltage Ranges | 200 V, 750 V |
| DC Current Ranges | 200 µA, 2000 µA, 20 mA, 200 mA, ≤10 A |
| Resistance Ranges | 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ |
| Functions | Diode test, transistor test (hFE), continuity buzzer, auto-polarity detection on DC ranges |
| Display | 3½‑digit LCD, max display 1999 |
| Input Impedance | Approx. 1 MΩ for voltage measurements |
| Overload Protection | Yes, except caution needed on high current (10 A) input |
| Power Supply | 9V battery (type 6F22) |
| Physical Size & Weight | ~126 × 70 × 24–28 mm; ~150–200 g including battery and leads |
| Accuracy | DCV ~ ±(0.5% + 2 digits), ACV ~ ±(1.2% + 10 digits) depending on range |
