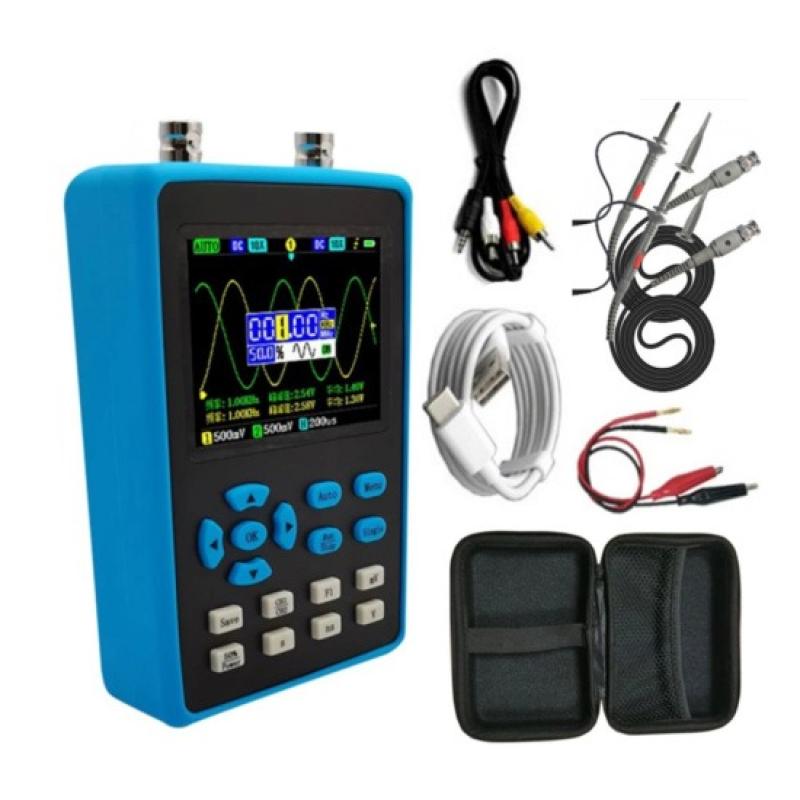

DSO2512G 120MHz 2-Channels Digital Oscilloscope DSO with Signal Generator & TV Out
৳22,350
The DSO2512G is a handy portable dual-channel oscilloscope that combines strong performance with compact convenience. With a 120 MHz bandwidth and up to 500 MS/s sampling rate, it captures detailed waveforms well enough for hobby electronics, diagnostics, repairs, and learning work. It also includes a built-in signal generator, so you can both measure and generate test signals without needing extra gear.
| Feature | Specification |
|---|---|
| Model | DSO2512G |
| Channels | 2 |
| Bandwidth | 120 MHz (single-channel), ~60 MHz when using both channels simultaneously |
| Sampling Rate | 500 MS/s (Mega-samples per second) |
| Display | 2.8-inch color TFT screen (≈ 320×240 resolution) |
| Vertical Sensitivity | 10 mV/div to 10 V/div |
| Trigger Types | Rise / Fall edges; Modes: Auto, Normal, Single |
| Signal Generator (Output Waveforms) | Sine: 0-10 MHz; other waveforms (square, triangle, etc.): 0-2 MHz; amplitude ~2.5 V |
| Time Base Range | From ~5 ns/div up to ~10 s/div |
| Storage Depth | ~128 k-bit (for waveform capture) |
| Impedance | 1 MΩ input impedance |
| Max Probe-Voltages | ±40 V (×1 probe), ±400 V (×10 probe) |
| Additional Modes / Features | XY mode, FFT/spectrum analysis, screenshot saving, persistence (none / 1 s / ∞), YT/Roll display mode |
| Battery | Built-in 4000 mAh lithium battery |
| Dimensions / Weight | About 137 × 82 × 38 mm; weight ~286 grams |
| Voltage Precision / Accuracy | Approx. ±2% vertical precision |
| Rise Time | < ~3 ns |
| Waveforms Supported (Generator) | Sine, Square, Triangle, etc. |
