AK Series Dynamical Modular AK80-9 Motor
৳71,988 - ৳82,560

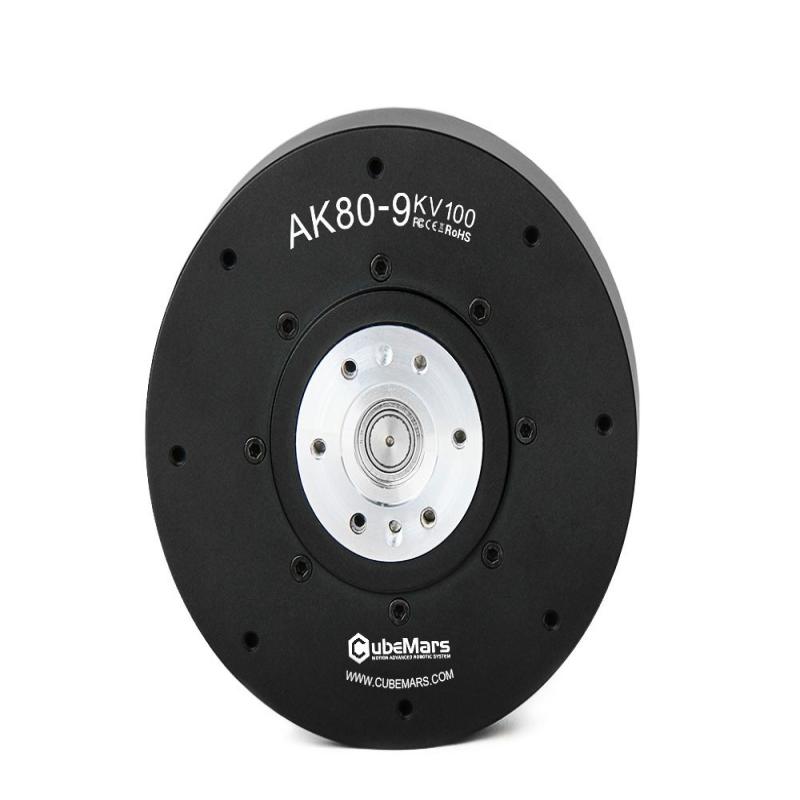

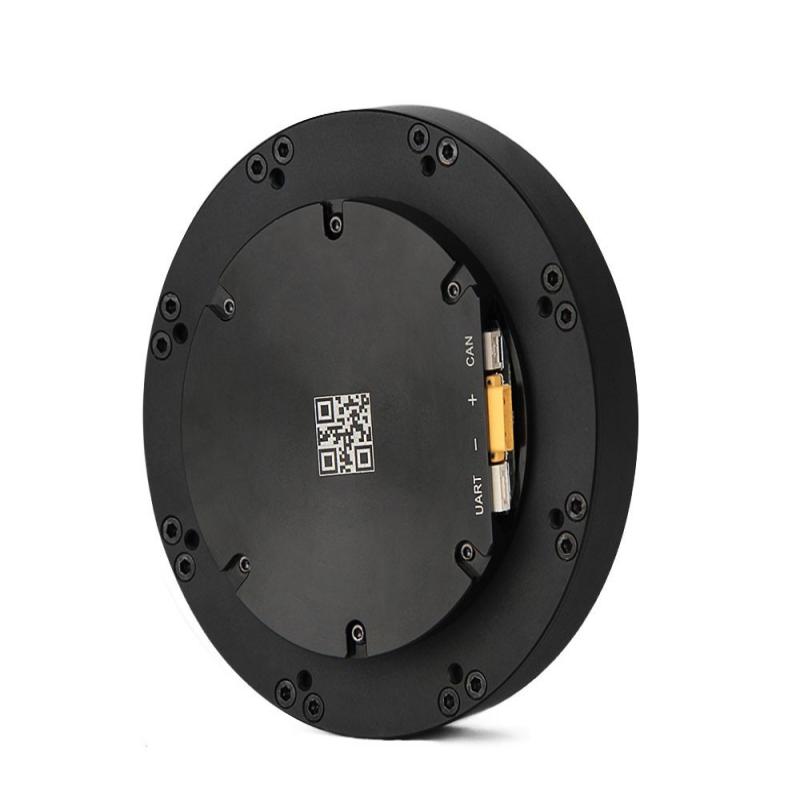

The AK80-9 is a high-performance robotic actuator developed by CubeMars, part of the AK Series Dynamical Modular lineup. It integrates a brushless DC motor, planetary gearbox, encoder, and driver into a compact unit, offering a plug-and-play solution for various robotic applications.
Option:
| Feature | Specification |
|---|---|
| Operating Voltage | 48V |
| Rated Torque | 9 Nm |
| Rated Speed | 390 RPM |
| Peak Torque | 22 Nm |
| Weight | 485g |
| Gear Ratio | 9:1 |
| Communication Interface | UART, CAN |
| Modes Supported | Servo, MIT |
| Applications | Exoskeletons, quadruped robots, robotic arms |
